=Electronics Hardware Questions=
|
|
|
| |
Q: Design a COMBINATIONAL circuit that can divide the clock frequency by 2.
A:
by Nuno T.

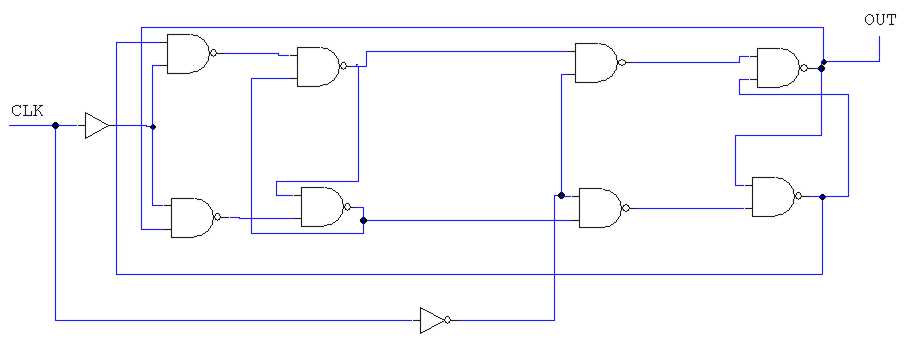

It is comprised of two NAND-RS Flip-Flops with NAND's on their inputs.
The second section is driven by an inverted Clock signal.
The input buffer is
for compensation of propagation delays for the first section.
|
|
|
|
|
